V3 TRUCKS

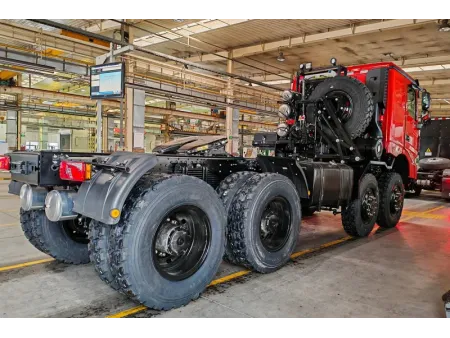

The 8×8 truck tractor is engineered for extreme heavy-duty applications, combining 550 HP of engine power, a 7-speed automatic transmission, and dual-reduction drive axles. Powered by a 6-cylinder in-line Weichai engine, this configuration meets Euro III emission standards. Built with military-grade durability, the heavy-duty vehicle is suited for diverse transport demands, offering excellent traction, high load capacity, and reliable performance in the most challenging environments.
- Engine power 550HP / 2100rpm
- Gross combination weight 80,000kg
- Fuel tank capacity 500 L
- Emissions rating Euro III
Specifications
| Model | |
| Driving Type | 8×8 |

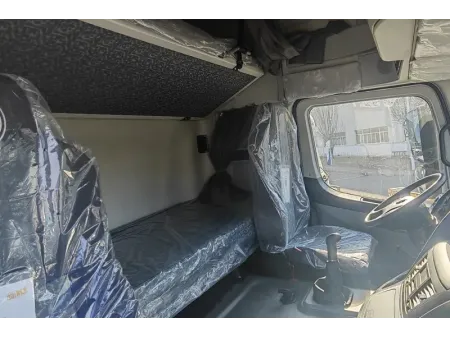

| Cab | Cab ExteriorHighway double layer bumper Three-step ladder Rear view mirror (manual adjustment) Exterior sun visor Cab Interior Air-sprung suspension driver's seat Air-conditioner Electric window regulator Adjustable steering wheel 24V power supply Radio (with MP3 player) Digital instruments |
| Engine | Type:WP13.550E30 Version:EURO III Displacement (I):12,540 Max. Power (HP/rpm):550/2100 Max. Torque (N.m/rpm):2300/1200~1500 Cylinder:6 in-line |
| Transmission | FC7A260DPR / 6.3-0.6 Gears:7 speed forward Operating principle:Automatic Transmission Transfer Box:yes Power Take-Off (P.T.O.):optional |
| Steering System | 8098 Recirculating ball steering gear,hydraulic booster |
| Clutch | Ø430mm single dry friction disc,diaphragm spring,pushing type |
| Fuel Tank | 500L (iron) |
| Front Axle | 10000kg 10000kg,driving steering axle,differential lock |
| Middle & Rear Axle | 16000kg 16000kg,double reduction driving axle,differential lock |
| Suspension | Front 12pcs×2 / Rear 13pcs hard parabolic spring |
| Brakes | Service:dual circuit air brakes Emergency/Parking:spring potential brake Auxiliary:EVB (optional ABS) |
| Performance Data | Gradeability@GVM:12% Max. Geared Road Speed:60km/h Final Drive Ratio:7.631 |
| Tyre | Size and Ply Rating:12.00R24-20PR Steel Rim |
| Dimensions | Wheel Base (WB):1500 2950 1450mm Overall Length (OL):8500mm Overall Width (OW):2800mm Overall Height (OH):3700mm Front Overhang (FOH):1515mm Rear Overhang (ROH):940mm Front fitting radius of semi-trailer:2500mm Rear fitting radius of semi-trailer:2300mm |
| Total Vehicle Weight | 18000kg |
*The above data is subject to the actual product.
Technical Features
Expand All
Complete cab system developed using Daimler-Benz technology
Complete cab system developed using Daimler-Benz technology
- Developed in collaboration with EDAG Germany, the V3 wide-body cab is designed based on Mercedes-Benz standards.
- The cab features a four-point full-floating suspension system with strong structural rigidity and energy absorption, enhancing both safety and ride comfort.
- Built with high-strength steel through integrated stamping, and reinforced with a composite cavity structure for increased durability.
- Successfully passed pendulum impact safety tests in compliance with EU collision regulations.
- Ideal for long-distance highway transportation.
Daimler-Benz frame technology with proven load-bearing performance
Daimler-Benz frame technology with proven load-bearing performance
Developed using Daimler-Benz technology, the frame features a variable-section, fish-belly-shaped composite beam design. The inner and outer frame rails are formed through a single-pass stamping process, delivering outstanding load-bearing performance. The result is a frame system renowned for its exceptional durability and structural strength, widely trusted in demanding heavy-load applications.
Dual reduction drive axle technology licensed from Daimler-Benz
Dual reduction drive axle technology licensed from Daimler-Benz
- Beiben was the first in China to adopt Daimler-Benz’s dual reduction drive axle technology.
- The axle housing is made from ductile cast iron and manufactured as a single integrated casting for enhanced strength and durability.
- According to tests conducted by nationally accredited institutions, the axle housing can withstand 2.5 times the rated load for over 1.17 million fatigue cycles without cracking.
Daimler-Benz's integrated balance suspension system
Daimler-Benz's integrated balance suspension system
- Equipped with an integrated balance suspension system developed using Daimler-Benz technology.
- The suspension adopts a combination of leaf springs, balance suspension, thrust rods, and stabilizer bars to ensure stability under load.
- Delivers high load-bearing capacity and excellent long-term reliability.
Powered by Weichai high-performance engines
Powered by Weichai high-performance engines
- All vehicle models are equipped with Weichai engines, known for their strong reliability and high-performance output.
- The engines are built with a high degree of structural reinforcement and generous design margins. Durability is proven through over 15,000 hours of bench testing and more than 50 million kilometers of road testing.
- Engine lifespan exceeds 1.8 million kilometers or 30,000 hours, supporting long-term, high-intensity usage.
- Strong environmental adaptability: maintains full power output at altitudes up to 2,800 meters, with minimal power loss under regular operation at 4,500 meters.
- Ensures flawless cold-start performance, with zero-startup failures at -20°C.
Equipped with FAST brand gearbox
Equipped with FAST brand gearbox
All vehicle models are equipped with FAST brand gearbox, delivering proven performance across a wide range of applications.
- Features a dual-countershaft design that enables power splitting and compact axial dimensions while maintaining high torque output.
- Reinforced key gear positions ensure reliable operation under complex and demanding working conditions.
- Offers a wide range of gear ratios for optimized powertrain matching based on application needs.
- Achieves a B10 service life of up to 1.2 million kilometers, placing it among the most reliable transmission systems in the global heavy-duty truck industry.
Common Optional Configurations
- Fuel tank: Optional fuel tank capacities are available based on customer requirements.
- Tire specifications: Available tire size options include 315/80R22.5, 14.00R20, 12R22.5, and 12.00R24
Applications
- Oil & energy: Built to handle extreme desert and polar climates, this unit is ideal for long-distance equipment transport in the oil and gas industry. It is available with high-temperature ( 50°C) or low-temperature (–40°C) packages and provides strong traction on sandy terrain with a towing capacity of up to 70 tons.
- Forestry & timber haulage: Perfect for navigating muddy forest routes while transporting oversized timber, this 8×8 tractor offers 339 mm ground clearance and high passability. With a 70-ton payload capacity, it adapts to the dimensions of heavy timber, while the shock-resistant suspension ensures operational efficiency in harsh forest environments.
- Oversized equipment transport: Capable of towing up to 200 tons, this unit is suited for oversized and non-standard cargo, such as wind turbine blades or construction machinery, ensuring compliance and performance on complex routes.
